Name: TB18C
Hits: 2482 Category: plate heat exchanger Model: TB18C
Product details

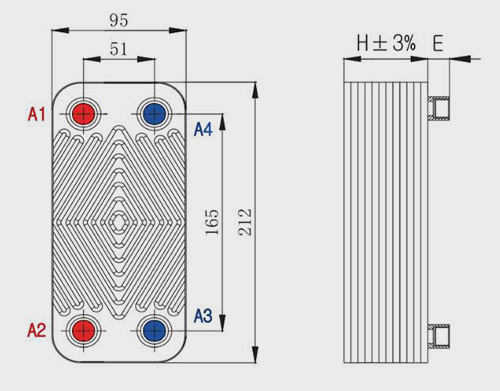

QTY of Plate | Weight(kg) | H | Fluid Holdup(V) | Exchange Area(㎡) | |
N | 0.55+0.08N | 10+3.26N | A1、A2 | A3、A4 | 0.018(N-1) |
0.033(N+1)/2 | 0.033N/2 | ||||
Technical Specifications | |
Designpressure | 1.0 MPa － 1.5 MPa |
Test pressure | 1.5 MPa － 3.0 MPa |
Designtemperature | -196°C －+225°C |
Channel | H |
Max. Plates | 80 |
Max. Fluid | 7 m³/ h |
Plates material | SUS 316 L/ SUS 304 |
