TB22A/C
  • Name:

    TB22A/C
    Hits: 2518
    Category: plate heat exchanger
    Model: TB22A/C

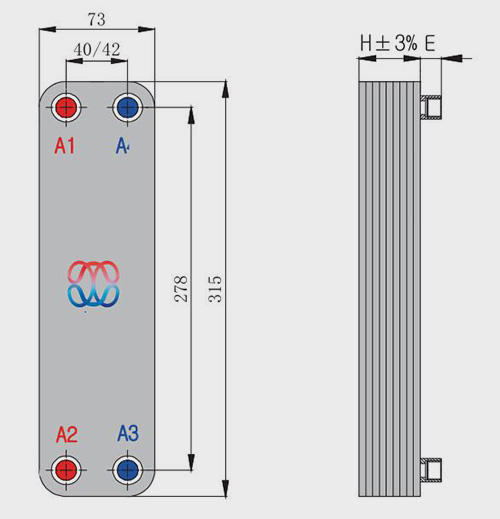

Product details


QTY of Plate

Weight(kg)

H

Fluid Holdup(V)

Exchange Area(㎡)

N

0.7+0.07N

9+2.26N

A1、A2

A3、A4

0.022(N-2)

0.04N/2

0.04(N-2)/2



Technical Specifications

Designpressure

1.0 MPa － 1.5 MPa

Test pressure

1.5 MPa － 3.0 MPa

Designtemperature

-196°C －+225°C

Channel

H

Max. Plates

60

Max. Fluid

4 m³/ h

Plates material

SUS 316 L/ SUS 304
