TB26A
  • Name:

    TB26A
    Hits: 2546
    Category: plate heat exchanger
    Model: TB26A
Product details

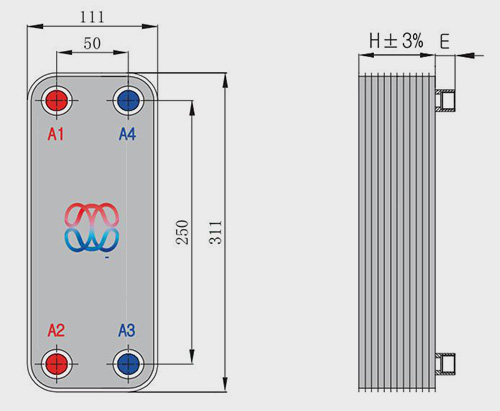

QTY of Plate

Weight(kg)

H

Fluid Holdup(V)

Exchange Area(㎡)

N

1.2+0.12N

9+2.36N

A1、A2

A3、A4

0.026(N-2)

0.05N/2

0.05(N-2)/2



Technical Specifications

Designpressure

3.0 MPa － 4.5 MPa

Test pressure

4.5 MPa － 6.75 MPa

Designtemperature

-196°C －+225°C

Channel

H、L、M

Max. Plates

120

Max. Fluid

13 m³/ h

Plates material

SUS 316 L/ SUS 304
